0.4 Inch Two Digit Seven Segment Display Common Anode Common Cathode

  • 1
  • 2

Brand Name : InterLED

Model Number : BD2-40XXX-XX2

Certification : RoHS

Place of Origin : China

MOQ : 2000

Payment Terms : T/T

Supply Ability : 500KK per month

Delivery Time : 3-4 weeks

Packaging Details : Carton box

Color : White, Red, Blue...

Mounting : THT (Through-Hole Technology)

Function : Graphics

Common pin : Common anode/cathode

Lifetime : 50000Hrs

OEM or ODM : Yes

Applicaiton : Indoor

Contact Now

Dual digits, 0.4 inch digit, 7-segment diplay, common anode or common cathode.

Dual digits 7 segment led display

a, Black with white diffuse

b, Colors: red(640nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm), pure blue(470nm).

c, Digit height: 0.4"

d, Customized requirements can meet.

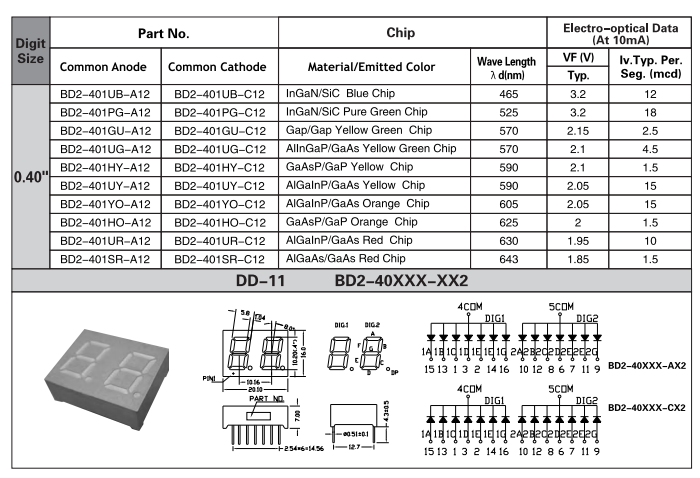

Part No Chip

Electro-optical Data

(At 10mA)
Common Anode Common Cathode △λ(nm) Wave Length λD(nm) VF (V) Iv.Typ. Per.Seg. (mcd)
Typ.
BD2-401UB-A12 BD2-401UB-C12 InGaN/SiC Blue Chip 465 3.2 12
BD2-401PG-A12 BD2-401PG-C12 InGaN/SiC Pure Green Chip 525 3.2 18
BD2-401GU-A12 BD2-401GU-C12 Gap/Gap Yellow Green Chip 570 2.15 2.5
BD2-401UG-A12 BD2-401UG-C12 AlGaInP/GaAs Yellow Green Chip 570 2.1 4.5
BD2-401HY-A12 BD2-401HY-C12 GaAsP/GaP Yellow Chip 590 2.1 1.5
BD2-401UY-A12 BD2-401UY-C12 AlGaInP/GaAs Yellow Chip 590 2.05 15
BD2-401YO-A12 BD2-401YO-C12 AlGaInP/GaAs Orange Chip 605 2.05 15
BD2-401HO-A12 BD2-401HO-C12 GaAsP/GaP Orange Chip 625 2 1.5
BD2-401UR-A12 BD2-401UR-C12 AlGaInP/GaAs Red Chip 630 1.95 10
BD2-401SR-A12 BD2-401SR-C12 AlGaAs/GaAs Red Chip 643 1.85 1.5

0.4 Inch Two Digit Seven Segment Display Common Anode Common CathodeMost character-oriented displays, such as seven-segment, fourteen-segment, and sixteen-segment displays, display complete characters at a time. The various parts of each character are connected in a two-dimensional matrix of diodes that only light up when both the "row" and "column" lines of the matrix are at the correct potential. The light-emitting elements are usually in the form of light-emitting diodes (LEDs), so that current can only flow in one direction, electrically isolating the individual "row" and "column" wires of the matrix from each other. With LCDs, the intersection of rows and columns does not conduct electricity at all..
